By Martin Conway

There are occasions when an elevation on the surface of the conjunctiva such as a pinguecula may be compromised by the edge of a scleral lens. This can cause irritation and injection, but most labs can offer a solution to this problem, and it should not deter the practitioner from proceeding with what would otherwise be a successful fit.

Fluorescein shows how the pinguecula has lifted the lens causing the Optic Zone junction into the epithelium.
Same eye fitted with a toric periphery showing flat axis markings along 10 degrees.

In order to ensure that the notch or elevation locates in the correct position upon insertion, it is advisable to stabilise the lens using prism ballast, or more preferably by refitting with a toric periphery.

Remember you can consult your lab and each lab has their own fitting philosophy. The suggested process to describe what lens you require for this issue is:

  1. Locate the position of the pinguecula in relation to the location markings on the fitting lens, i.e. “ along 190 degrees”.
  2. Describe the width of the notch as an angular measurement using the narrow beam and the axis guide on the slit lamp. i.e. 20 or 30 degrees.
  3. Describe how far into the matrix of the lens you wish to ingress i.e. 1.5 or 2.0 mm.

Some labs may offer an elevated section rather than a notch. The same process applies, however:

  1. Stabilise the lens, locate the direction of the elevation in relation to the lens markings.
  2. Use an angular measurement to describe the width of the elevation, but in the case of an elevation, you will need to specify the height required (up to 600 micron).

The final instruction to the lab, for a notch, will therefore be: “Notch along 190 degrees. 30 degrees width, 1.5 mm deep.” The lab will cut into the lens using a standard tool (normally around 8.00 mm radius) to give a smooth rounded curve and avoid contact with the pinguecula.

Refitted with toric periphery and notch. No injection, good alignment around remainder of the landing zone.

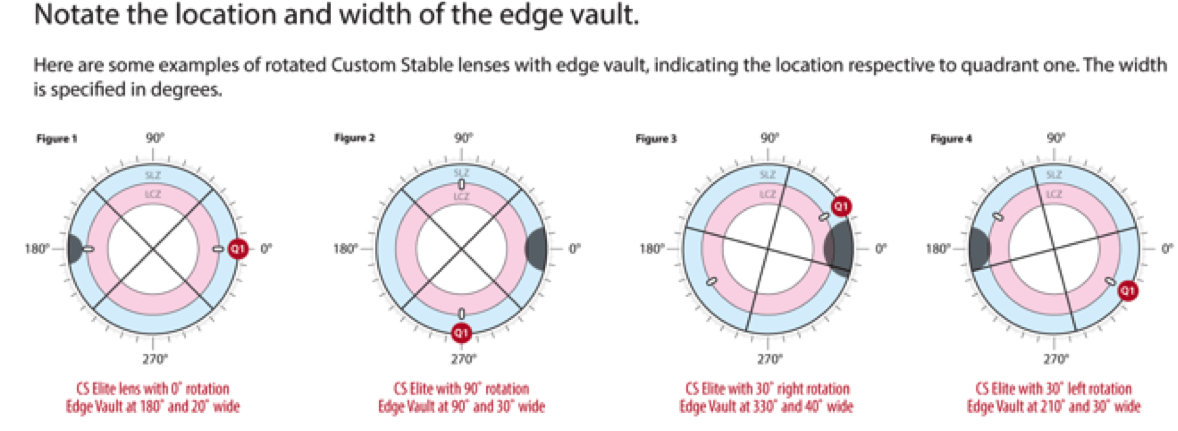

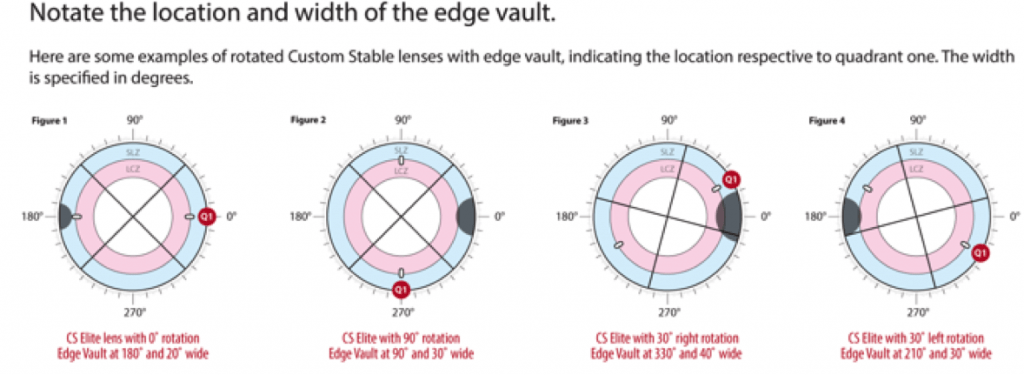

The graphic below shows how Valley Contax illustrates edge vaults with their Custom Stable Lens.

Thank you to Falco Kontaktlinsen (lens on eye) and Valley Contax (edge vault graphic) for contributing imagery to this article.
